Distributed Caching with Redis

A distributed cache allows multiple application instances to share the same cached data instead of maintaining separate local caches.

This improves cache hit rate, ensures data consistency across instances, and reduces unnecessary database queries.

One of the most popular distributed caching solutions is Redis.

Why Distributed Caching?

Suppose an application is deployed with four instances behind a load balancer. A request for customer 100 reaches Application 1, which loads the customer from the database and stores it in its local cache.

The next request for the same customer may be routed to Application 3. Since its local cache is empty, it again queries the database even though the data was already cached by another instance.

As the number of application instances increases, maintaining separate caches leads to lower cache hit rates, higher memory consumption, and increased load on the database.

             Load Balancer
                   |
       +-----------+-----------+
       |           |           |
       v           v           v
   +-------+   +-------+   +-------+
   | App 1 |   | App 2 |   | App 3 |
   +-------+   +-------+   +-------+
       |           |           |
   Local Cache Local Cache Local Cache
       |           |           |
       +-----------+-----------+
                   |
                   v
               Database

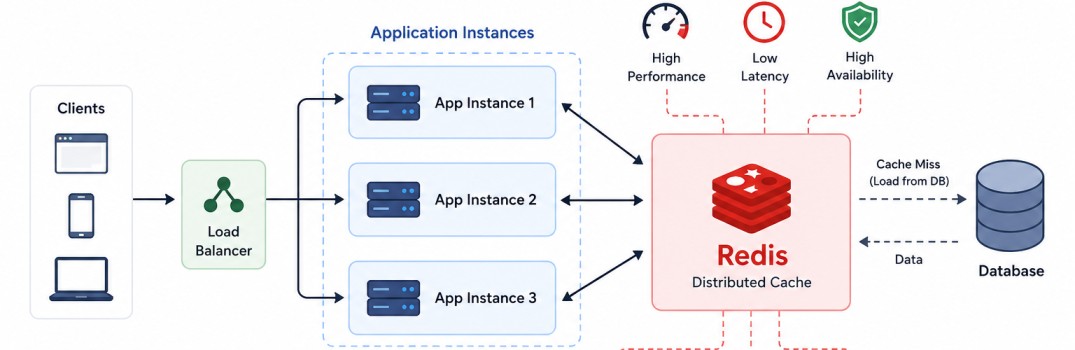

A distributed cache eliminates this problem by storing cached data in a shared cache that every application instance can access.

             Load Balancer
                   |
       +-----------+-----------+
       |           |           |
       v           v           v
   +-------+   +-------+   +-------+
   | App 1 |   | App 2 |   | App 3 |
   +-------+   +-------+   +-------+
       |           |           |
       |           |           |
       +-----------+-----------+
                   |
             +------------+
             |   Redis    |
             +------------+
                   |
                   v
               Database

How Redis Works?

Redis stores data entirely in memory (RAM), allowing most operations to complete in microseconds instead of the milliseconds typically required for database queries.

Applications communicate with Redis over the network using its lightweight Redis Serialization Protocol (RESP) and simple commands such as GET, SET, and DEL.

Data is stored as key-value pairs, where each key uniquely identifies a value.

A common practice is to use descriptive keys such as customer:100, product:500, or order:12345, making cached data easy to organize and retrieve.

For example, storing customer information in Redis can be done using the following command.

SET customer:100 "{...customer json...}"

Retrieving the same customer requires only a single command.

GET customer:100

When the customer information changes, the cache entry can be removed or updated.

DEL customer:100

Redis also supports assigning a Time To Live (TTL) to cached data, allowing entries to expire automatically after a specified duration. This helps prevent stale data from remaining in the cache indefinitely.

SETEX customer:100 3600 "{...customer json...}"

These operations are extremely fast because Redis performs them directly in memory, avoiding disk I/O during normal reads and writes.

Although Redis is an in-memory data store, it can optionally persist data to disk for recovery after a restart.

Redis Data Structures

Although Redis is often used as a simple key-value cache, it supports several native data structures, including Strings, Hashes, Lists, Sets, Sorted Sets, Bitmaps, HyperLogLog, Streams, and Geospatial indexes.

Some commonly used examples include storing cached JSON using Strings, user profiles with Hashes, message queues with Lists, unique tags with Sets, leaderboards using Sorted Sets, and event streams with Streams.

SET customer:100 "{...json...}"          # String

HSET customer:100 name "John" age 30     # Hash

LPUSH orders order1                      # List

SADD roles ADMIN USER                    # Set

ZADD leaderboard 1000 Alice              # Sorted Set

XADD orders * customer 100 amount 500    # Stream

Choosing the appropriate data structure often reduces application complexity and improves performance.

Common Redis Commands

The following commands are among the most frequently used when working with Redis in production applications.

Command	Purpose
SET key value	Store a value.
GET key	Retrieve a value.
DEL key	Delete a key.
EXPIRE key seconds	Set a TTL on a key.
TTL key	Check the remaining TTL.
INCR key	Increment a numeric value.
DECR key	Decrement a numeric value.
HSET key field value	Store a field in a hash.
HGET key field	Retrieve a field from a hash.
LPUSH key value	Add an element to the beginning of a list.
SADD key value	Add one or more elements to a set.
ZADD key score value	Add an element with a score to a sorted set.

Redis Pipelining

Normally, each Redis command requires a separate network round trip between the application and the Redis server.

When many commands are executed one after another, network latency can become a significant bottleneck even though Redis itself is extremely fast.

With pipelining, multiple commands are sent to Redis together without waiting for the response to each individual command.

Redis executes the commands in order and returns all responses in a single network round trip, significantly improving throughput.

Without pipelining:

Application            Redis
     |                   |
GET key1  -------------> |
     | <------------- Value1
     |
GET key2  -------------> |
     | <------------- Value2
     |
GET key3  -------------> |
     | <------------- Value3

With pipelining:

Application            Redis
     |                  |
GET key1                |
GET key2 -------------> |
GET key3                |
     |                Value1
     | <------------- Value2
     |                Value3

Typical Read Flow

A distributed cache is commonly used with the Cache Aside strategy, where the application is responsible for reading from and writing to the cache.

      Client
         |
         v
   Application
         |
         v
       Redis
      /     \
    Hit     Miss
     |        |
     v        v
 Return    Database
   Data       |
              v
        Store in Redis
              |
              v
          Return Data

When a request arrives, the application first checks Redis for the requested data.

If the data is found (a cache hit), Redis returns it immediately, avoiding a database query and significantly reducing response time.

If the data is not found (a cache miss), the application retrieves it from the database, stores it in Redis for future requests, and then returns the response to the client.

Subsequent requests for the same data are served directly from Redis until the cache entry expires or is invalidated.

Cache Warming

Cache warming is the process of preloading frequently accessed data into Redis before user requests arrive.

Instead of waiting for the first request to populate the cache, applications load commonly accessed data during startup or through scheduled background jobs.

Cache warming helps reduce initial cache misses, lowers database load after deployments or restarts, and improves application response times for frequently accessed data.

Cache Eviction

Since memory is limited, Redis removes data when it reaches its configured maximum memory limit.

This process is known as cache eviction. Without an eviction policy, Redis may reject new write operations once the configured memory limit is reached.

Redis supports multiple eviction policies to determine which keys should be removed. One of the most commonly used is Least Recently Used (LRU), where keys that have not been accessed recently are evicted first.

Another popular policy is Least Frequently Used (LFU), which removes keys that have been accessed the fewest times.

Redis also supports random eviction and expiration-based eviction, where only keys with a configured TTL (Time To Live) are considered for removal.

The appropriate policy depends on the application's access patterns, data lifetime, and available memory.

For redis.conf:

# Maximum memory Redis can use
maxmemory 2gb

# Eviction policy
maxmemory-policy allkeys-lru

Cache Invalidation

One of the biggest challenges in distributed caching is ensuring that cached data remains consistent with the database.

When data is updated or deleted, the corresponding cache entry must also be updated or removed. Otherwise, applications may continue serving stale data.

The most common approaches are:
1. Delete on update – Remove the cache entry immediately after updating the database. The next read reloads fresh data into Redis.
2. Update cache – Update both the database and Redis together.
3. TTL expiration – Allow entries to expire automatically after a configured duration.

Choosing the appropriate strategy depends on the application's consistency requirements and update frequency.

Redis Persistence

Although Redis is primarily an in-memory data store, it can optionally persist data to disk.

Persistence allows Redis to recover data after a restart or system failure, making it suitable not only as a cache but also as a primary data store for certain use cases.

Redis supports two persistence mechanisms. RDB (Redis Database) creates point-in-time snapshots of the entire dataset at configurable intervals.

Since snapshots are taken periodically, some recently written data may be lost if Redis crashes before the next snapshot.

AOF (Append Only File) records every write operation by appending it to a log file. When Redis restarts, it replays these operations to reconstruct the dataset.

AOF provides better durability than RDB but requires more disk space and introduces slightly higher write overhead.

Redis can also use both RDB and AOF together, which is a common production configuration. RDB provides faster backups and quicker recovery, while AOF minimizes data loss by recording recent write operations.

When Redis is used purely as a distributed cache, persistence is often disabled because cached data can be rebuilt from the database after a restart.

This reduces disk I/O and improves performance, making it the preferred configuration for many caching workloads.

Configuring Persistence

Redis persistence is configured in the redis.conf file or by passing command-line options when starting Redis.

RDB snapshots are enabled using the save directive, which specifies when Redis should create a snapshot.

# Save after 1 change in 15 minutes
save 900 1

# Save after 10 changes in 5 minutes
save 300 10

# Save after 10,000 changes in 60 seconds
save 60 10000

The snapshot is written to a file named dump.rdb (by default), which Redis loads automatically during startup if it exists.

AOF is enabled by turning on append-only mode.

appendonly yes
appendfilename "appendonly.aof"

# Flush to disk every second (recommended)
appendfsync everysec

The appendfsync option controls durability. everysec is the most common production setting because it offers a good balance between performance and durability.

Other options are always (maximum durability but slower) and no (OS decides when to flush).

To use both RDB and AOF, simply enable both configurations. On restart, Redis prefers the AOF file because it typically contains the most up-to-date data.

If Redis is used only as a cache, persistence is often disabled because cached data can be rebuilt from the database.

# Disable RDB snapshots
save ""

# Disable AOF
appendonly no

Redis Clustering

A single Redis server can become a bottleneck as application traffic and data volume grow.

Redis supports clustering, which distributes data automatically across multiple Redis nodes, allowing the cache to scale horizontally without requiring application changes.

      Applications
            |
            v
   +-------------------+
   |   Redis Cluster   |
   +-------------------+
   | Node 1 | Node 2   |
   | Node 3 | Node 4   |
   +-------------------+
            |
            v
        Database

Redis Cluster divides the key space into 16,384 hash slots. Each node is responsible for a subset of these slots, and every key is mapped to a slot using a hashing algorithm.

This ensures that data is distributed evenly across the cluster.

When an application performs a GET or SET operation, the Redis client automatically determines which node owns the corresponding hash slot and sends the request directly to that node.

This routing is transparent to the application.

To improve high availability, each primary node can have one or more replica nodes. Replicas continuously synchronize data from their primary node and can automatically take over if the primary fails, minimizing downtime.

As the workload increases, additional Redis nodes can be added to the cluster. Redis automatically redistributes hash slots among the nodes, allowing storage capacity and throughput to grow with the cluster size.

Redis Cluster is the preferred deployment model for large-scale production systems because it provides horizontal scalability, fault tolerance, and high throughput while eliminating the single point of failure associated with a standalone Redis server.

Redis Sentinel vs Redis Cluster

Redis Sentinel and Redis Cluster solve different problems and are often confused. Sentinel focuses on high availability, while Cluster focuses on both horizontal scaling and high availability.

Feature	Redis Sentinel	Redis Cluster
Primary Purpose	High Availability	Horizontal Scaling + High Availability
Dataset	Entire dataset on every primary	Partitioned across multiple nodes
Scaling	Vertical	Horizontal
Failover	Automatic	Automatic
Data Distribution	No	Yes (Hash Slots)

Use Redis Sentinel when the dataset fits on a single Redis server and the primary requirement is automatic failover.

        Application
             |
             v
        Redis Sentinel
             |
    +--------+--------+
    |                 |
 Primary          Replica

Sentinel monitors the primary and promotes the replica if the primary fails.

Use Redis Cluster when the dataset or request volume exceeds the capacity of a single server and the application requires both horizontal scaling and high availability.

          Application
               |
               v
        Redis Cluster
      +------+------+------+
      | P1   | P2   | P3   |
      | R1   | R2   | R3   |
      +------+------+------+

Each primary owns part of the key space, and each has one or more replicas. The cluster itself manages sharding and failover.

Redis Transactions

Redis supports transactions, allowing multiple commands to be executed as a single unit.

Once EXEC is issued, Redis executes all queued commands sequentially without interleaving commands from other clients.

MULTI
SET customer:100 "John"
INCR customerCount
EXEC

A transaction begins with MULTI, which queues subsequent commands. The queued commands are executed together when EXEC is issued.

If the transaction should not be executed, it can be canceled before execution using the DISCARD command.

MULTI
SET customer:100 "John"
INCR customerCount

DISCARD

Redis also provides the WATCH command for optimistic locking. WATCH monitors one or more keys before a transaction begins.

If any watched key is modified by another client before EXEC is called, Redis aborts the transaction, allowing the application to retry with the latest data.

WATCH account:100

MULTI
DECRBY account:100 500
EXEC

If another client updates account:100 after the WATCH command but before EXEC, the transaction is aborted and none of the queued commands are executed.

Distributed Locking

Redis is commonly used to implement distributed locks, ensuring that only one application instance can perform a particular operation at a time.

This is useful when multiple application instances share the same resources and concurrent execution could lead to duplicate or inconsistent results.

SET lock:order123 unique-token NX EX 30

The NX option creates the lock only if it does not already exist, while EX 30 automatically expires the lock after 30 seconds.

The unique-token identifies the owner of the lock and helps ensure that only the process that acquired the lock can safely release it.

Distributed locks are commonly used for distributed scheduling, leader election, preventing duplicate order processing, avoiding concurrent updates, and ensuring that only one application instance executes a scheduled job or critical business operation at a time.

Redis Pub/Sub

Redis supports a lightweight Publish/Subscribe (Pub/Sub) messaging model, allowing applications to exchange real-time messages without directly communicating with each other.

Publishers send messages to a channel, and all subscribers listening to that channel receive the message immediately.

# Publisher
PUBLISH orders "Order #100 created"

# Subscriber
SUBSCRIBE orders

Redis Pub/Sub is commonly used for real-time notifications, chat applications, live dashboards, cache invalidation events, and communication between microservices.

Since messages are delivered only to currently connected subscribers and are not persisted, Pub/Sub is best suited for transient, real-time communication rather than reliable message processing.

Summary

Redis is commonly used to cache data that is read frequently but changes relatively infrequently. Common examples include product catalogs, customer profiles, application configuration, pricing information, and session data.

It is also widely used to store user sessions, authentication tokens, rate-limiting counters, and frequently accessed API responses, where extremely low latency is essential.

Using Redis as a distributed cache significantly reduces database load by serving repeated requests directly from memory, resulting in faster response times and improved application scalability.

Redis supports horizontal scaling through clustering and provides high availability using replication and automatic failover.

However, a distributed cache introduces an additional network hop between the application and the database. Although Redis is extremely fast, accessing it over the network is still slower than reading from local memory.

Applications must also implement proper cache invalidation strategies to prevent serving stale data.

Additionally, because Redis stores data primarily in memory, the amount of data that can be cached is limited by the available RAM.
